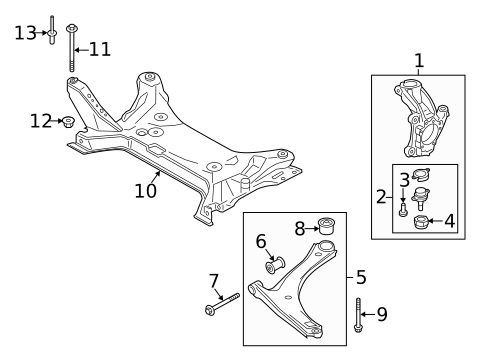

Suspension, Springs & Related Components for 2021 Ford Transit-250
No.
Part # / Description / Price
Price
2
Motorcraft™ Suspension Ball Joint
Ford
Ford Positions: Front
Description: Transit. 4630 lb front axle rating. Front Axle Rating 4,630 Lbs.
MSRP $108.00
$68.31
MSRP $108.00
$68.31
5
Motorcraft™ Lower Control Arm Ford
Ford Positions: Front right
Description: Right. 4wd. Awd. Rwd. E-Transit.
MSRP $452.73
$278.88
MSRP $452.73
$278.88
10
Cross-Member Ford
Ford Notes: PARTS: Part has realted component that cannot be reused/reinstalled; nut.
Description: Rwd, to 02/07/2021. Transit.
No.
Part # / Description / Price
Price
1
Steering Knuckle Ford
Ford Positions: Right
Description: Max rating front axle. Rwd, single rear wheels. AWD. single rear wheels. E-Transit. Right.
MSRP $356.00
$225.17
MSRP $356.00
$225.17
1
Steering Knuckle Ford
Ford Positions: Right
Description: Transit. Right. Max rating front axle. AWD. dual rear wheels.
MSRP $450.00
$302.40
MSRP $450.00
$302.40
1
Steering Knuckle Ford
Ford Positions: Left
Description: Max rating front axle. AWD. single rear wheels. E-Transit. Left.
MSRP $428.33
$287.84
MSRP $428.33
$287.84
1
Steering Knuckle Ford
Ford Positions: Left
Description: Transit. Left. Max rating front axle. Rwd, dual rear wheels. AWD. dual rear wheels.
MSRP $450.00
$302.40
MSRP $450.00
$302.40
2
Lower Ball Joint Ford
Ford Positions: Right
Notes: PARTS: Part included with knuckle. Part has related component that cannot be reused/reinstalled; bolt and nut.
Description: Max front axle rating. 4wd. Awd. Rwd. Exc.Front Axle Rating 4,630 Lbs. E-Transit.
MSRP $91.50
$63.14
MSRP $91.50
$63.14
3
Lower Ball Joint Bolt Ford
Ford Positions: Right
Notes: PARTS: Part included with lower ball joint. Part cannot be reused/reinstalled.
Description: Rwd. 4wd. Awd.
MSRP $9.25
$6.95
MSRP $9.25
$6.95
4
Lower Ball Joint Nut Ford
Ford Positions: Right
Notes: PARTS: Part included with lower ball joint. Part cannot be reused/reinstalled.
Description: Rwd. 4wd. Awd.
MSRP $8.00
$6.00
MSRP $8.00
$6.00
5
Lower Control Arm Ford
Ford Positions: Right
Notes: PARTS: Part has related component that cannot be reused/reinstalled; front and rear bolt.
Description: Right. 4wd. Awd. Rwd. E-Transit.
MSRP $452.73
$278.88
MSRP $452.73
$278.88
5
Motorcraft™ Lower Control Arm Ford
Ford Positions: Left
Notes: PARTS: Part has related component that cannot be reused/reinstalled; front and rear bolt.
Description: Left. 4wd. Awd. Rwd. E-Transit.
MSRP $449.09
$276.64
MSRP $449.09
$276.64
5
Motorcraft™ Lower Control Arm Ford
Ford Positions: Right
Notes: PARTS: Part has related component that cannot be reused/reinstalled; front and rear bolt.
Description: Right. 4wd. Awd. Rwd. E-Transit.
MSRP $452.73
$278.88
MSRP $452.73
$278.88
5
Lower Control Arm Ford
Ford Positions: Left
Notes: PARTS: Part has related component that cannot be reused/reinstalled; front and rear bolt.
Description: Left. 4wd. Awd. Rwd. E-Transit.
MSRP $449.09
$276.64
MSRP $449.09
$276.64
7
Lower Control Arm Front Bolt Ford
Ford Positions: Right
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Rwd. 4wd. Awd.
MSRP $12.00
$8.40
MSRP $12.00
$8.40
9
Lower Control Arm Rear Bolt Ford
Ford Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Rwd. 4wd. Awd.
MSRP $15.00
$10.50
MSRP $15.00
$10.50
10
Cross-Member Ford
Ford Notes: PARTS: Part has related component that cannot be reused/reinstalled; nut.
Description: 4wd, from 02/08/2021. 4WD. to 02/07/2021. Awd. Rwd. E-Transit.
MSRP $905.77
$608.68
MSRP $905.77
$608.68
11
MSRP $15.00
$10.50
12
Steering Tie Rod Nut Ford
Ford Notes: PARTS: Part cannot be reused/reinstalled.
Description: Rwd. 4wd. Electric. Hydraulic, 2020-23. Without rs. Awd. M14. With rs, to 09/21/2017. Hydraulic 2015-19.
MSRP $5.00
$3.75
MSRP $5.00
$3.75
13
Rail Assembly Rivet Ford
Ford Description: Rwd. 4wd. With long wheelbase. With 121 wheelbase. Awd. 148" wheelbase, without extended.
MSRP $10.00
$7.50
MSRP $10.00
$7.50

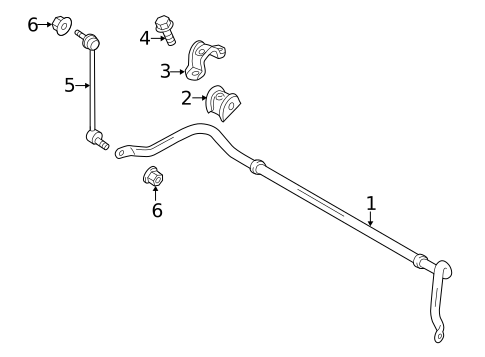

No.
Part # / Description / Price
Price
1
Stabilizer Bar Ford
Ford Notes: PARTS: Part has related component that cannot be reused/reinstalled; screw.
Description: Without 510 series. 4wd. Awd. Rwd. Exc.Special Equipment Package. E-Transit.
MSRP $246.67
$170.20
MSRP $246.67
$170.20
2
Suspension Stabilizer Bar Bushing Ford
Ford Description: Without 510 series. 4wd. Awd. Rwd. Exc.Special Equipment Package. E-Transit.
MSRP $44.83
$33.56
MSRP $44.83
$33.56
3
MSRP $19.50
$15.21
4

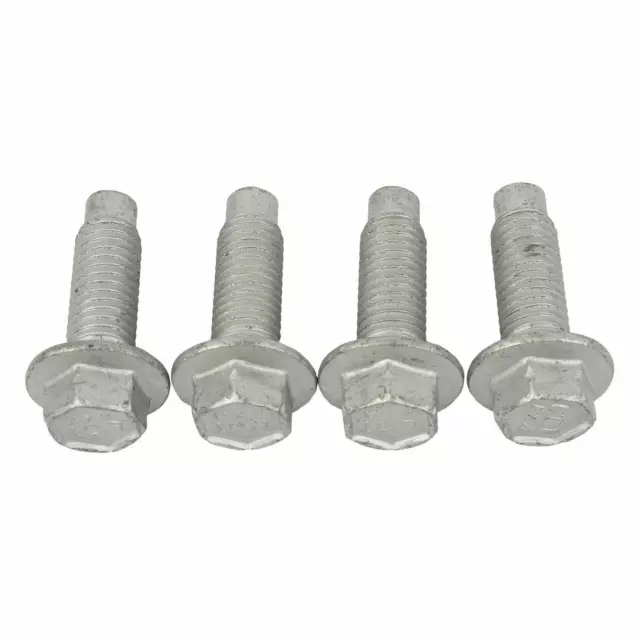

Stabilizer Bar Screw Ford
Ford Notes: PARTS: Part cannot be reused/reinstalled.
Description: Rwd. 4wd. 3.2L. Awd. 3.5L. M10x30mm.
MSRP $5.00
$3.75
MSRP $5.00
$3.75
5
Motorcraft™ Stabilizer Link Ford
Ford Positions: Right
Notes: PARTS: Part has related component that cannot be reused/reinstalled; nut.
Description: Rwd. 4wd. Awd. E-Transit.
MSRP $63.09
$43.29
MSRP $63.09
$43.29
5
Stabilizer Link Ford
Ford Positions: Right
Notes: PARTS: Part has related component that cannot be reused/reinstalled; nut.
Description: Rwd. 4wd. Awd. E-Transit.
MSRP $63.09
$43.29
MSRP $63.09
$43.29
6
Stabilizer Link Nut Ford
Ford Positions: Right
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Rwd. 4wd.
MSRP $5.00
$3.75
MSRP $5.00
$3.75
No.
Part # / Description / Price
Price
1
Shock Absorber Assembly Ford
Ford Positions: Right
Notes: PARTS: Part listed is for estimating purposes. Please contact local dealer for availability and pricing. Part has related component that cannot be reused/reinstalled; nut and top nut.
Description: Series 410L,390M,430L. M2. Awd. T250. Rwd. E-Transit. Cargo van.
MSRP $207.27
$131.10
MSRP $207.27
$131.10
1
Suspension Strut Ford
Ford Positions: Left
Notes: PARTS: Part listed is for estimating purposes. Please contact local dealer for availability and pricing. Part has related component that cannot be reused/reinstalled; nut and top nut.
Description: Series 410L,390M,430L. M2. E-Transit. Cargo van. Awd. T250. Rwd.
MSRP $207.27
$131.10
MSRP $207.27
$131.10
1
Strut Ford
Ford Positions: Front
Description: Transit. Bus. With low roof. 4630 lb frt. axle rating.
MSRP $245.45
$155.25
MSRP $245.45
$155.25
1
MSRP $223.64
$141.45
1
MSRP $207.27
$131.10
2
Coil Spring Ford
Ford Positions: Right
Notes: PARTS: Part listed is for estimating purposes. Please contact local dealer for availability and pricing. Part has related component that cannot be reused/reinstalled; nut and top nut.
Description: Transit. Wagon. Without extended frame series. Cutaway/chassis cab. 410m/l, 430m/l series. Max frt. axle rating. Awd. T250. Rwd.
MSRP $190.67
$131.56
MSRP $190.67
$131.56
6
Motorcraft™ Upper Bearing Ford
Ford Positions: Front upper
Description: Rwd. 4wd. E-Transit.
MSRP $86.73
$59.51
MSRP $86.73
$59.51
7
Motorcraft™ Upper Mount Ford
Ford Positions: Front
Description: Rwd. 4wd. Awd. E-Transit.
MSRP $83.45
$57.26
MSRP $83.45
$57.26

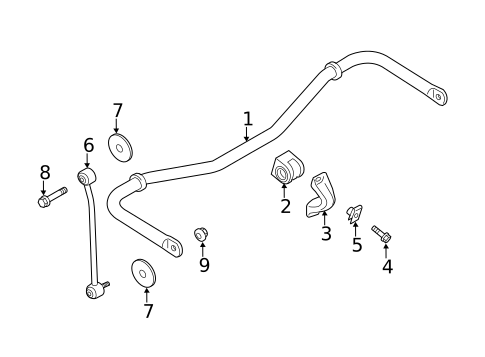

No.
Part # / Description / Price
Price
1
MSRP $256.67
$177.10
1
MSRP $275.00
$189.75
2
MSRP $99.00
$68.31
3
MSRP $20.72
$16.16
6
MSRP $65.09
$44.66
6
MSRP $65.09
$44.66
7
MSRP $5.00
$3.75
8
MSRP $12.00
$8.40
Related Parts
Part # / Description / Price
Price
Motorcraft™ Stabilizer Link Ford
Ford Positions: Front
Description: Rwd. 4wd. Awd. E-Transit.
MSRP $63.09
$43.29
MSRP $63.09
$43.29
MSRP $65.09
$44.66
